| 直線軸 |
|
型號
|
軸徑G6
|
尺寸(mm)
|
重量
|
|
D(mm)
|
公差(μm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
1000
|
1200
|
1300
|
1500
|
2000
|
|
SQ3
|
Φ3
|
-0.003
-0.01
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.06
|
|
SQ4
|
Φ4
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.1
|
|
SQ5
|
Φ5
|
-0.004
-0.012
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.15
|
|
SQ6
|
Φ6
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.23
|
|
SQ8
|
Φ8
|
-0.005
-0.014
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.4
|
|
SQ10
|
Φ10
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.62
|
|
SQ12
|
Φ12
|
-0.006
-0.017
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
0.89
|
|
SQ13
|
Φ13
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
1.04
|
|
SQ14
|
Φ14
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
1.22
|
|
SQ15
|
Φ15
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
1.4
|
|
SQ16
|
Φ16
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
1.58
|
|
SQ17
|
Φ17
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
1.8
|
|
SQ20
|
Φ20
|
-0.007
-0.020
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
2.47
|
|
SQ25
|
Φ25
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
3.85
|
|
SQ30
|
Φ30
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
5.55
|
|
SQ35
|
Φ35
|
-0.009
-0.025
|
-
|
-
|
○
|
○
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
7.55
|
|
SQ40
|
Φ40
|
-
|
-
|
-
|
-
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
9.87
|
|
SQ45
|
Φ45
|
-
|
-
|
-
|
-
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
12.5
|
|
SQ50
|
Φ50
|
-
|
-
|
-
|
-
|
○
|
○
|
○
|
○
|
◎
|
◎
|
○
|
◎
|
◎
|
15.5
|
|
SQ60
|
Φ60
|
-0.010
-0.029
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
◎
|
◎
|
○
|
◎
|
◎
|
22.2
|
|
SQ80
|
Φ80
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
◎
|
◎
|
○
|
◎
|
◎
|
39.6
|
|

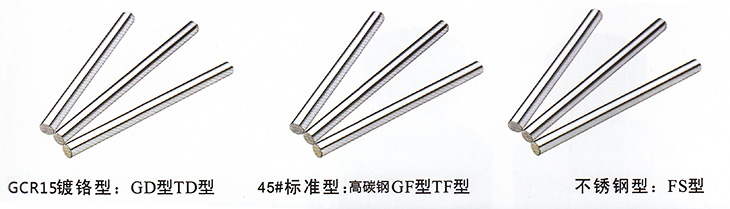

注：可能選擇鍍鉻型
|
◎標準為庫存品
|
|
可選擇不銹鋼型（材質SUS440C ）
|
○標準準庫存品
|
| |   |
|
